Optomed Aurora IQ — Portable Non-Mydriatic Handheld Fundus Camera
Fundus Camera
Portable handheld fundus camera offering high-quality retinal and anterior eye imaging.
Optomed Aurora IQ — Portable Non-Mydriatic Handheld Fundus Camera
OPTOMED

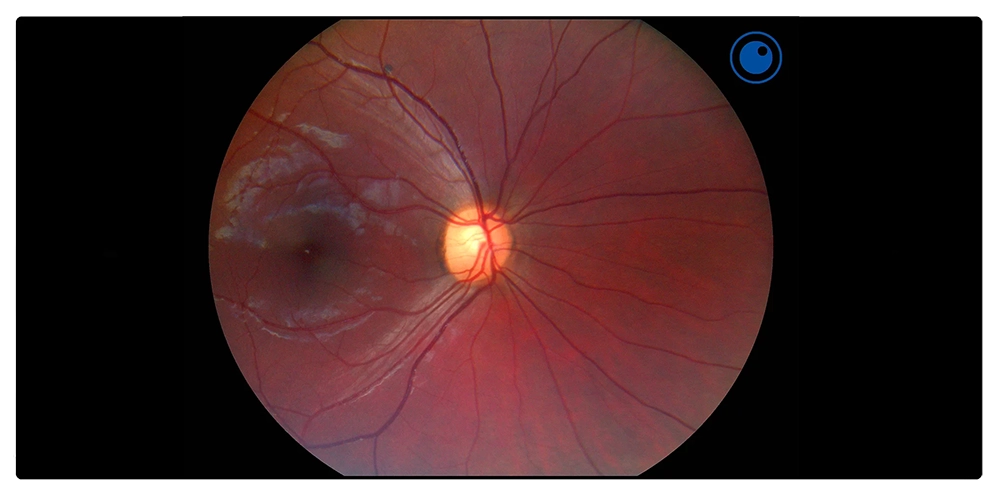

The Optomed Aurora IQ is a next-generation portable handheld fundus camera designed for fast and precise retinal and anterior eye imaging. Operating in non-mydriatic mode — no need for pupil dilation — it’s especially suitable for routine screenings or mobile settings. The device delivers high–contrast images that make even subtle vascular or structural retinal changes clearly visible. It is ideal for diabetic retinopathy screening, neurologic assessments, and emergency settings (e.g. papilledema detection), offering a flexible and efficient solution for eye care professionals.
Detailed information
Technical Data
• Type — Non-mydriatic digital fundus camera
• Field of view — 50° (total 50×40)
• Image sensor — 5 Mpix
• Optical resolution — > 60 lp/mm (ISO 10940-2009)
• Autofocus & auto-exposure, focus range –20D to +20D
• Minimum pupil size — 3.1 mm
• Image format — JPG / Video MPEG-4
• Display — 4″ TFT-LCD, 800×480 px
• Internal memory — 16 GB
• Battery — Rechargeable Li-ion 3.63 V / 2600 mAh (approx. 2 h use)
• Connectivity — WLAN, USB
• Photography modes — Color, Red-free, Infrared (Anterior module: Color + Fluorescein optional)
• Dimensions — 122×202×98 mm
• Weight — 526 g
