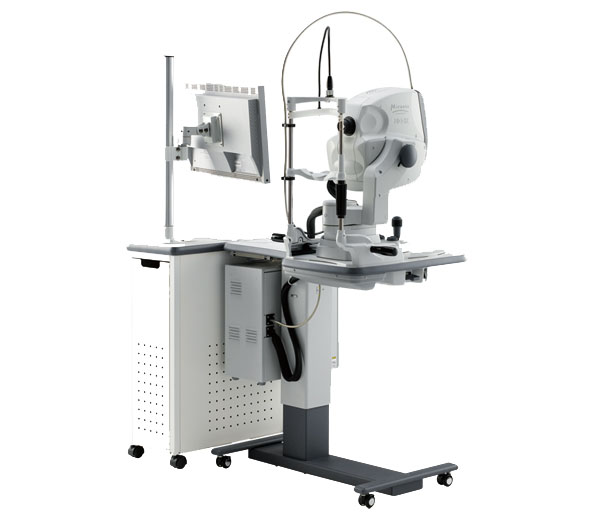

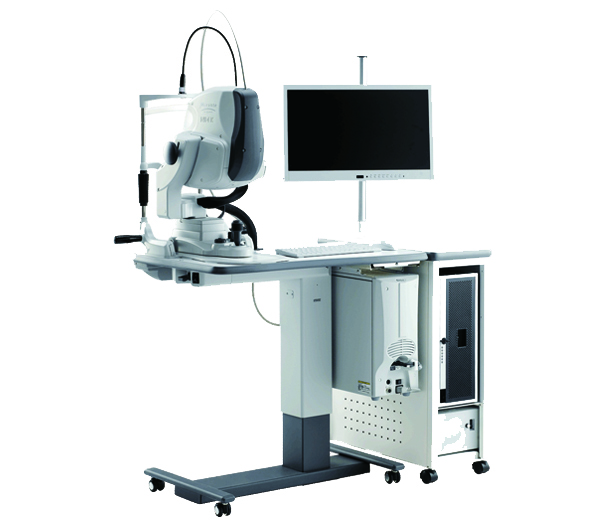

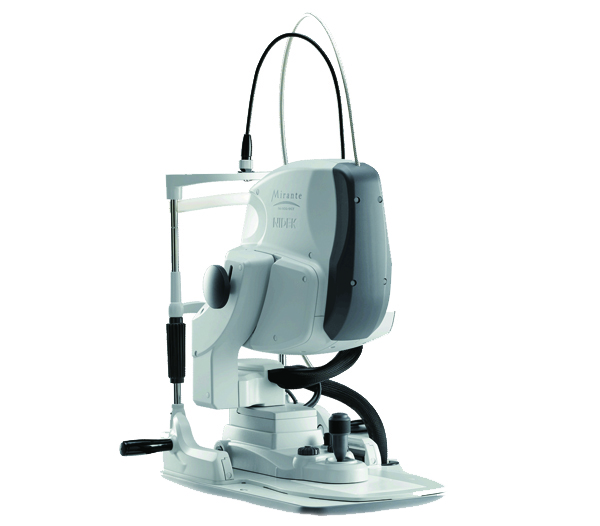

Scanning Laser Ophthalmoscope Mirante SLO/OCT Mirante SLO
Tomograph
The ultimate multimodal imaging platform Ultra wide field x ultra HD image Unsurpassed color FA and ICG Retro mode HD wide area OCT Fly Through function Structural and functional evaluation using Microperimeter
Scanning Laser Ophthalmoscope Mirante SLO/OCT Mirante SLO
NIDEK
The ultimate multimodal imaging platform For the SLO/OCT model – Color / FA / ICG / Blue-FAF / Green-FAF / Retro mode – OCT / OCT-Angiography* For the SLO model – Color / FA* / ICG* / Blue-FAF / Green-FAF / Retro mode Ultra wide field x ultra HD image* Unsurpassed color Dynamic/Simultaneous FA and ICG Unique Retro mode HD wide area OCT Fly Through function Optional
Detailed information
Detailed Information
For the SLO/OCT model
– Color / FA / ICG / Blue-FAF / Green-FAF / Retro mode
– OCT / OCT-Angiography
For the SLO model – Color / FA* / ICG* / Blue-FAF / Green-FAF / Retro mode
Detailed information
163° ultra wide field image
The clear image of the entire 163° field of view** enables detailed evaluation of pathologies from the fovea to the extreme periphery.
* Ultra wide field imaging is available with the optional wide-field adapter.
** Measured from the center of the eye
Detailed Information
Ultra 4K HD and averaging function for unparalleled clarity
4,096 x 4,096 pixel imaging captures every detail of the retina and choroid. Additionally, zooming in allows high magnification, clear visualization of subtle changes in pathology, and resolution of the fine details of capillaries.
The FlexTrack algorithm corrects image distortion due to unstable fixation and enhances averaging quality.
Corrected image using FlexTrack
Distorted image due to poor fixation
Detailed Information
Three separate RGB detectors simultaneously scan different depths of retina with red, green, and blue wavelengths. A color histogram is available for fine adjustment based on pathology or practitioner preference.
RGB detectors (Light-sensitive elements)
Color histogram adjusted similar to slit lamp view
Color histogram adjusted similar to fundus camera image
Detailed Information
HD dynamic angiogram Videos can be recorded at a maximum of 1,024 x 1,024 pixels for up to 120 seconds. Multiple short videos can be recorded during the same measurement.
Detailed Information
Simultaneous FA and ICG The Mirante allows simple, simultaneous acquisition of FA and ICG images. The live IR monitoring enables alignment prior to fluorescence emission and reduces the risk of missing the very early phase of angiography. The Auto gain control (AGC) simultaneously adjusts contrast of each FA and ICG image, making the imaging of dynamic blood flow a very simple procedure. *Available for the SLO/OCT model. Optional for the SLO model.
Live IR monitoring
Simultaneous FA and ICG imaging display
Detailed Information
Retro mode is a unique non-invasive technique for detecting pathologic changes in the choroid. This imaging modality uses scattered IR light to detect abnormal reflection in the choroid caused by drusen, edema and other subtle chorioretinal pathologies.
Color and Retro mode images (Drusen)
Detailed Information
The Retina map allows wide area diagnosis including the macula and optic disc in a single shot. The ultra fine mode and tracing HD plus functions provide high quality images for detailed observation from vitreous to choroid.
*Available for the SLO/OCT model.
AngioScan OCT-Angiography (optional)
